Gantry Type 5 Axis CNC Machining Centers

RECOJI 5 Axis CNC Machining Centers incorporates the concept of high-dynamic performance machining, which enables it to have the high-speed and high-precision characteristics required for machining complex surfaces. It is widely used in the machining of all kinds of metal, such as complex aluminum alloy steel parts in aircraft, high-speed rail and other industries.

Product Name	Gantry Type 5 Axis CNC Machining Centers
Stroke range	Technical parameters
X axis stroke range	12000mm
Y axis stroke range	3000mm
Z axis stroke range	1500mm
A axis rotation range	± 110°
C axis rotation range	±360°
Gantry effective width	4400mm
Distance between spindle and workstable	150~1650mm
Feeding driver	Technical parameters
Max. Cutting speed X/Y/Z	20/20/20m/min
Max. Cutting speed A/C	120/120°/s
Max. Moving speed X/Y/Z	40/40/25m/min
5 axis part	Technical parameters
Driver methods	Electric spindle
Spindle Maximum rotating speed	16000rpm
Spindle power (S1/S6-40%)	50/62kW
Spindle torque (S1/S6-40%)	120/148N.m
Spindle taper hole	HSK-A100

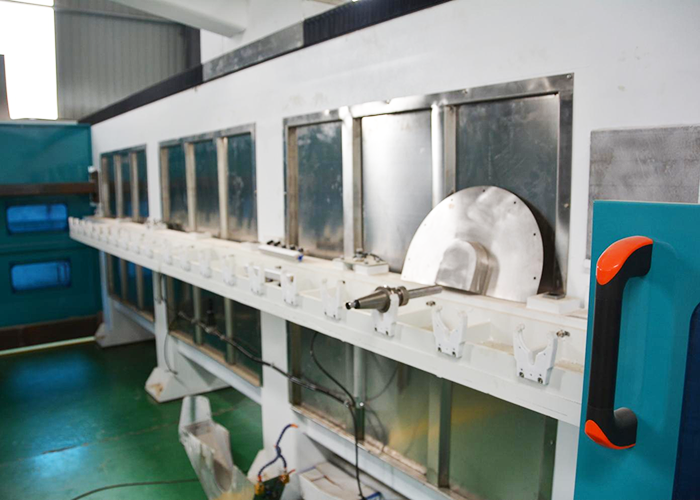

Tool magazine	Technical parameters
Tool magazine capacity	20 toolsT
Tool shank model	HSK-A100T
Positioning accuracy	Technical parameters
X axis	Per meter 0.015 mm Whole stroke 0.1mm
Y axis	Whole stroke 0.025mm
Z axis	0.015mm
A axis	±5″(arc second)
C axis	±5″(arc second)
Repositioning Accuracy	Technical parameters
X axis	0.02mm
Y axis	0.015mm
Z axis	0.012mm
A axis	±3″ (arc second)
C axis	±3″ (arc second)

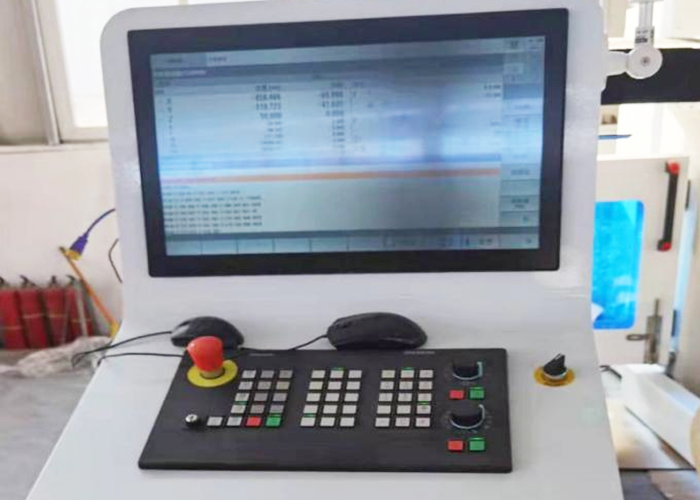

Controller	SIEMENS 840DSL

Product Name

Gantry Type 5 Axis CNC Machining Centers

Stroke range

Technical parameters

X axis stroke range

12000mm

Y axis stroke range

3000mm

Z axis stroke range

1500mm

A axis rotation range

± 110°

C axis rotation range

±360°

Gantry effective width

4400mm

Distance between spindle and workstable

150~1650mm

Feeding driver

Technical parameters

Max. Cutting speed X/Y/Z

20/20/20m/min

Max. Cutting speed A/C

120/120°/s

Max. Moving speed X/Y/Z

40/40/25m/min

5 axis part

Technical parameters

Driver methods

Electric spindle

Spindle Maximum rotating speed

16000rpm

Spindle power (S1/S6-40%)

50/62kW

Spindle torque (S1/S6-40%)

120/148N.m

Spindle taper hole

HSK-A100

Tool magazine

Technical parameters

Tool magazine capacity

20 toolsT

Tool shank model

HSK-A100T

Positioning accuracy

Technical parameters

X axis

Per meter 0.015 mm Whole stroke 0.1mm

Y axis

Whole stroke 0.025mm

Z axis

0.015mm

A axis

±5″(arc second)

C axis

±5″(arc second)

Repositioning Accuracy

Technical parameters

X axis

0.02mm

Y axis

0.015mm

Z axis

0.012mm

A axis

±3″ (arc second)

C axis

±3″ (arc second)

Controller

SIEMENS 840DSL

Common Questions

We listed some common questions, you can find answers here quickly.

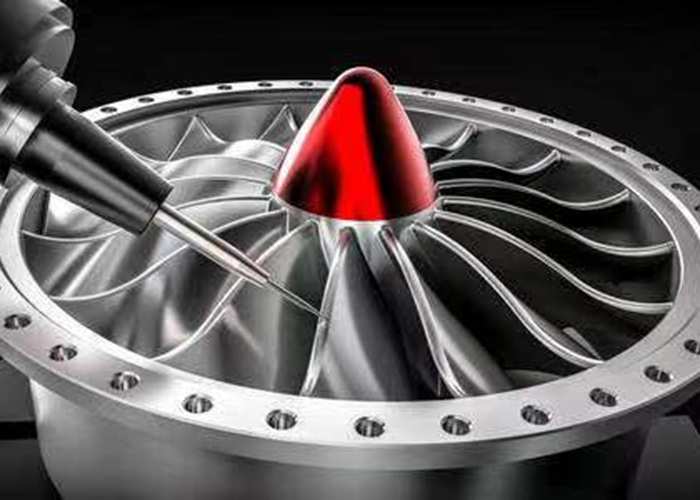

Benefits of 5-axis Machining

5 axis machining helps in the cost-effective manufacturing of sophisticated design.
In continuous 5-axis CNC machining, the cutting tool and the workpiece can rotate and move simultaneously during operation, saving time and allowing operators to manufacture intricate geometries with organic surfaces.
Continuous 5-axis CNC machining offers improved surface finish, speed, and dimensional stability, but it has the highest cost-per-part.
The advantages of switching to 5-axis machining include:

• Minimized Setup
• Complex Designs
• Rotational Accuracy
• Faster Material Removal
• Better Surface Finishes

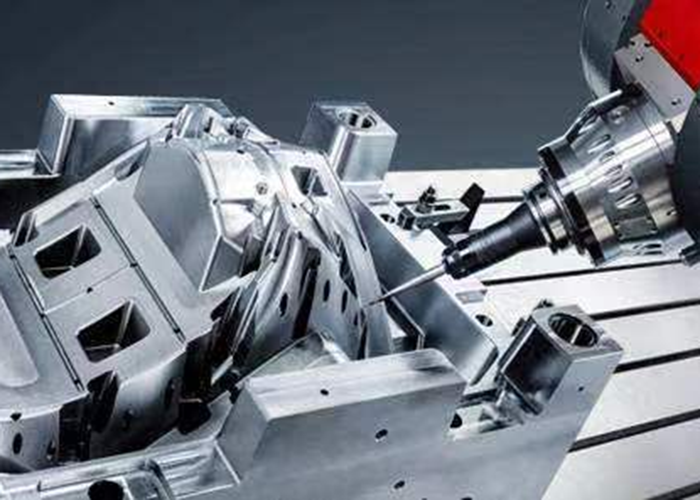

What is RTCP?

RTCP involves keeping the point of the tool that is cutting the part in contact with the part throughput the entire machining cycle.
Benefits of RTCP:
• Allows for ease of programming in either CAM or manual programming of G-code
• Higher accuracy due to less human error
• Being able to apply tool length normal to the spindle direction
• Less code needed
• Smoother toolpaths and rotary/linear motion
• Shorter cycle times
• Reduced Setup/Machining Time
• 3D compensation ability
After-sale service brief introduction

• Online service and remote video teaching is available.
• Overseas onsite training can be provided.
• Upgraded serviced is available
• Software integration
• Matched milling cutters,fixtures and molds can be customized according to client's production need
Why a 5 axis software is important to a 5 axis machine

• It always keeps the workpiece updated live within the operations sequence to optimize the tool path and avoid air-cutting.
• The simulation automatically commences in the background immediately after the tool path is calculated. The user can avoid any collisions that may occur without having to switch to Simulation mode.Thus the CNC programming workflow is very streamlined and takes much less time.
• It takes into account real machine kinematic limitations for initial tool path calculation. There is no need for post-processing and separate simulation for collision and axis limits control.

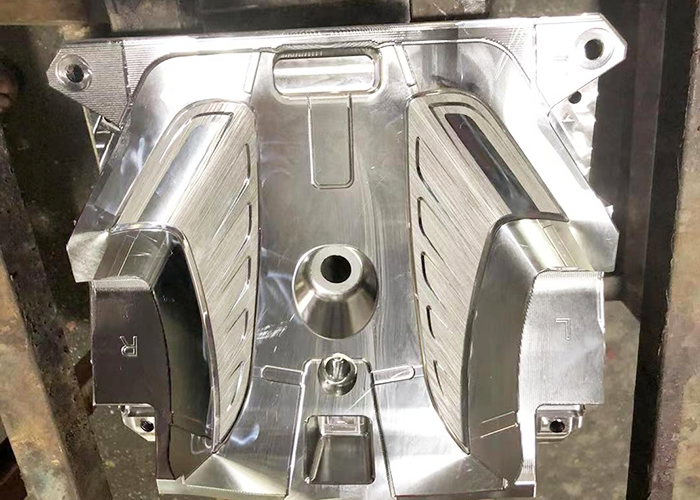

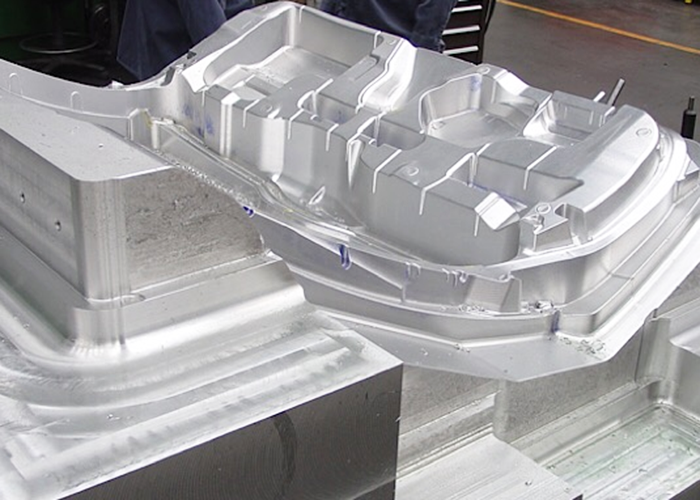

What is 5 axis CNC machine

Using a 5-axis CNC machine lets operators approach a part from all directions in a single operation, eliminating the need to manually reposition the workpiece between operations. 5-axis CNC machining saves time and is ideal for creating complex and precise parts like those found in the furniture, molds making, medical, oil and gas, and aerospace industries,ship, new energy industry,etc.
