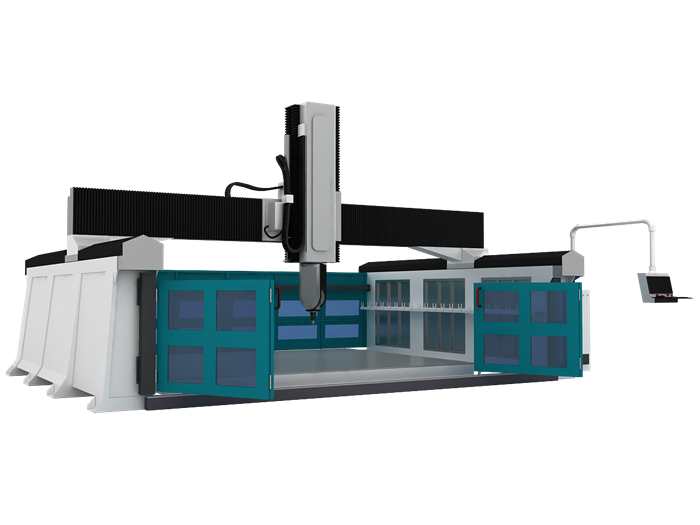

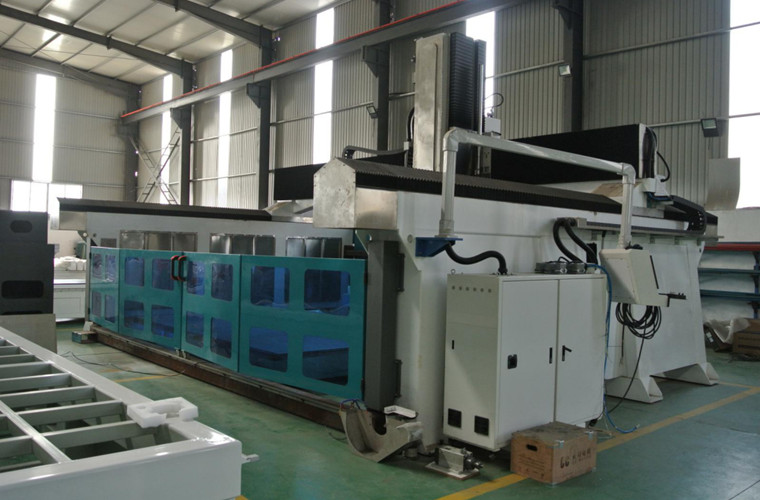

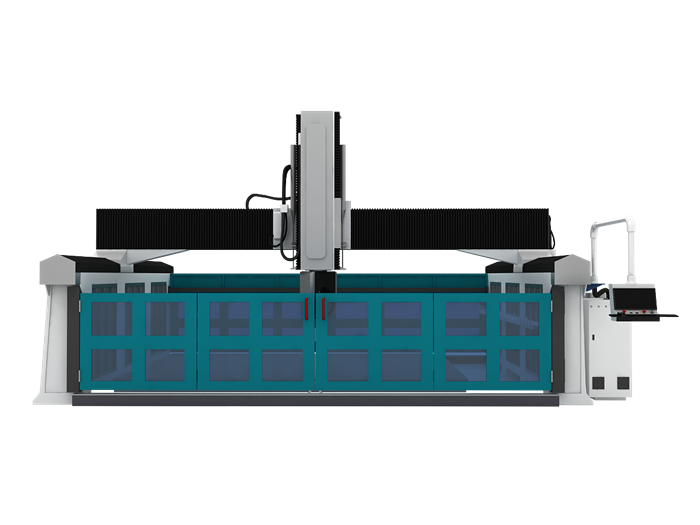

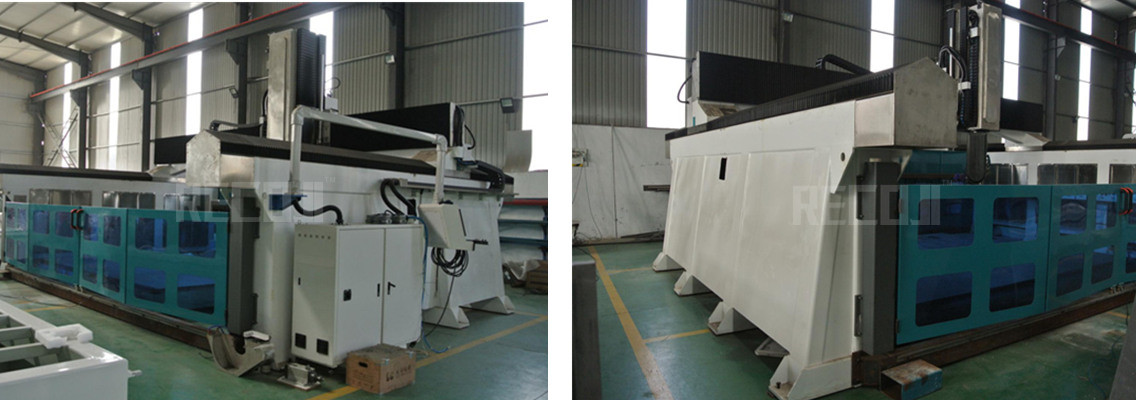

RJ2030S 5 AXIS CNC ROUTER-RECOJI 5 AXIS CNC ROUTER

Product Name	RJ2030S 5 AXIS CNC ROUTER
Model	RJ2030S
Working stroke （X、Y、Z）	20003000800mm
Structure	After sand blasting, stress relief annealing treatment, CNC gantry is milled by the machining center at one time

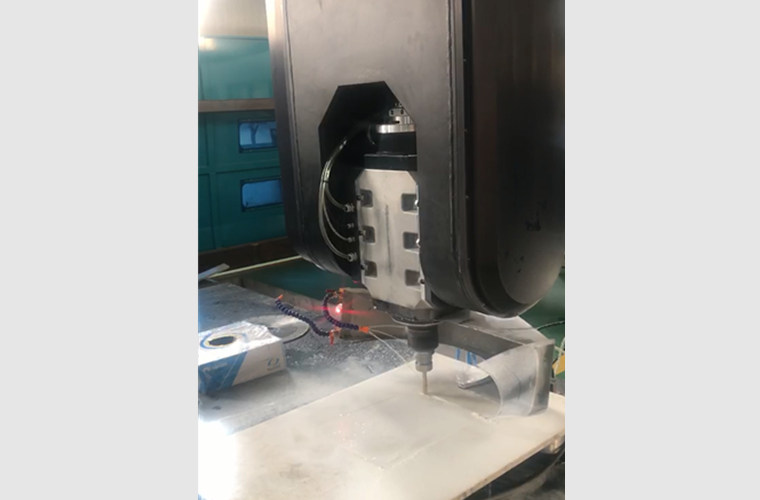

Five-axis head	DEMAS five-axis head
Spindle	Italy HITECO spindle
Spindle power	10-12KW
Ball screw	TBI
Guide rail	Taiwan dust-proof mute high precise guide rail
Rack	Taiwan KH/German screw rack

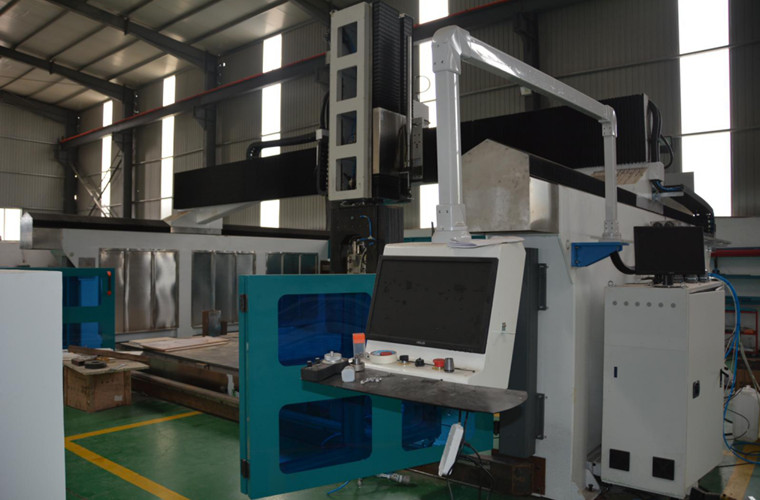

Control system	Taiwan SYNTEC system with RTCP
Motor system	YASKAWA servo system

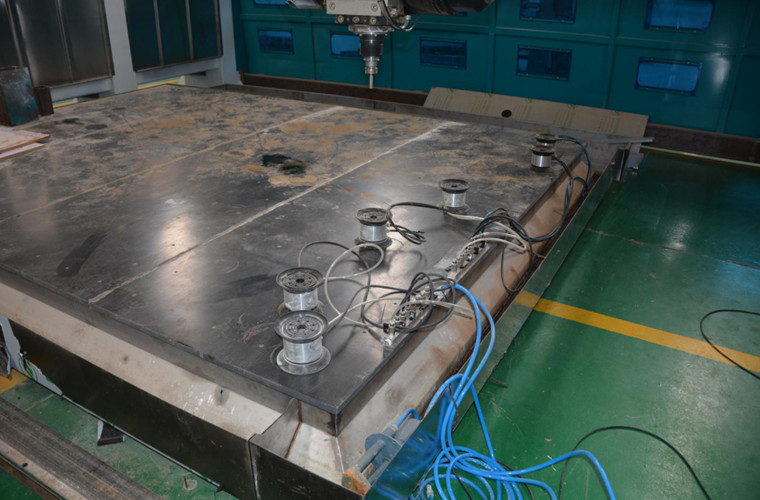

Working table	Cast aluminum vacuum absorption
Lubrication	Auto lubrication system
Safe protection system	Overtravel protection/emergency stop protection/limit limit/air pressure alarm/electrical protection/leakage protection

Product Name

RJ2030S 5 AXIS CNC ROUTER

Model

RJ2030S

Working stroke （X、Y、Z）

2000*3000*800mm

Structure

After sand blasting, stress relief annealing treatment, CNC gantry is milled by the machining center at one time

Five-axis head

DEMAS five-axis head

Spindle

Italy HITECO spindle

Spindle power

10-12KW

Ball screw

TBI

Guide rail

Taiwan dust-proof mute high precise guide rail

Rack

Taiwan KH/German screw rack

Control system

Taiwan SYNTEC system with RTCP

Motor system

YASKAWA servo system

Working table

Cast aluminum vacuum absorption

Lubrication

Auto lubrication system

Safe protection system

Overtravel protection/emergency stop protection/limit limit/air pressure alarm/electrical protection/leakage protection

Common Questions

We listed some common questions, you can find answers here quickly.

Benefits of 5-axis Machining

5 axis machining helps in the cost-effective manufacturing of sophisticated design.
In continuous 5-axis CNC machining, the cutting tool and the workpiece can rotate and move simultaneously during operation, saving time and allowing operators to manufacture intricate geometries with organic surfaces.
Continuous 5-axis CNC machining offers improved surface finish, speed, and dimensional stability, but it has the highest cost-per-part.
The advantages of switching to 5-axis machining include:

• Minimized Setup
• Complex Designs
• Rotational Accuracy
• Faster Material Removal
• Better Surface Finishes
What is RTCP?

RTCP involves keeping the point of the tool that is cutting the part in contact with the part throughput the entire machining cycle.
Benefits of RTCP:
• Allows for ease of programming in either CAM or manual programming of G-code
• Higher accuracy due to less human error
• Being able to apply tool length normal to the spindle direction
• Less code needed
• Smoother toolpaths and rotary/linear motion
• Shorter cycle times
• Reduced Setup/Machining Time
• 3D compensation ability
After-sale service brief introduction

• Online service and remote video teaching is available.
• Overseas onsite training can be provided.
• Upgraded serviced is available
• Software integration
• Matched milling cutters,fixtures and molds can be customized according to client's production need
Why a 5 axis software is important to a 5 axis machine

• It always keeps the workpiece updated live within the operations sequence to optimize the tool path and avoid air-cutting.
• The simulation automatically commences in the background immediately after the tool path is calculated. The user can avoid any collisions that may occur without having to switch to Simulation mode.Thus the CNC programming workflow is very streamlined and takes much less time.
• It takes into account real machine kinematic limitations for initial tool path calculation. There is no need for post-processing and separate simulation for collision and axis limits control.
What is 5 axis CNC machine

Using a 5-axis CNC machine lets operators approach a part from all directions in a single operation, eliminating the need to manually reposition the workpiece between operations. 5-axis CNC machining saves time and is ideal for creating complex and precise parts like those found in the furniture, molds making, medical, oil and gas, and aerospace industries,ship, new energy industry,etc.
